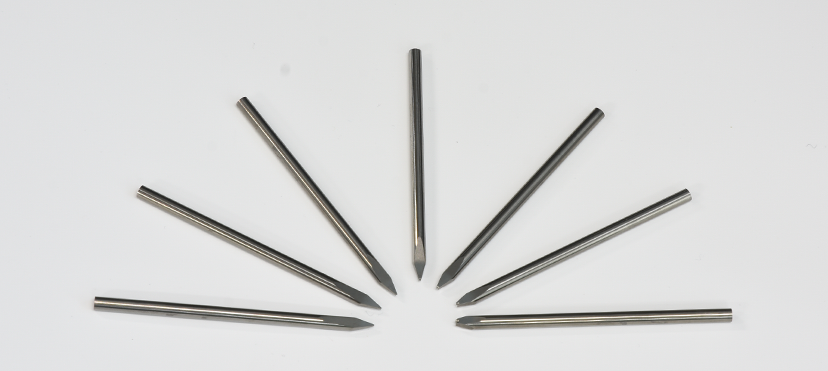

SHORT Wedge

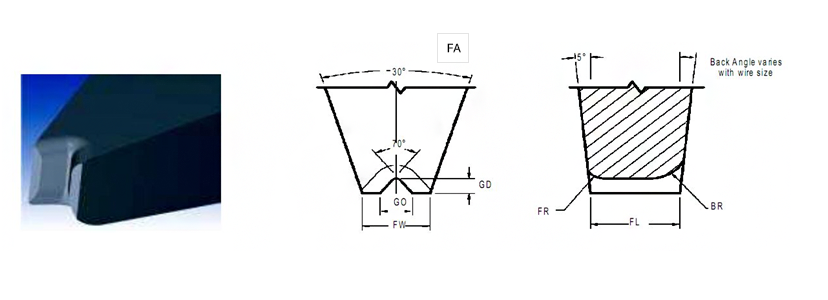

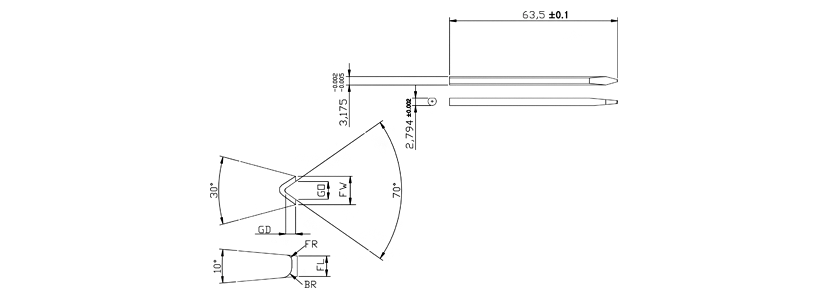

MODEL GO mil/um WD mil/um FL mil/um FW mil/um
(Ref)		 FR mil/um
(Ref)		 BR mil/um FA Degree GD mil/um
(Min)
SST-175-05S 140.8 5/125 317.5 279 86 173 70 86.4
SST-175-06S 171.6 6/150 376 305 104 208 70 102
SST-175-08S 226 8/200 495 381 137 277 70 140
SST-175-10S 310 10/250 620 483 173 345 70 190
SST-175-12S 373 12/300 747 584 208 414 70 229
SST-175-15S 465.8 15/381 930 740 259 518 70 287
SST-175-20S 620 20/500 1240 965 345 691 70 381
